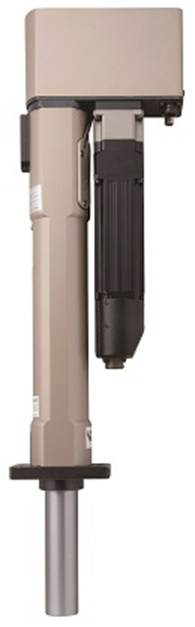

DSP 3000 Series Servo Press Systems
- Full-digital servo press using technology developed from our servo nut-runners.
- By integrating a load cell into every model, high-precision control of the press-fit is available (using a closed-loop method). As many as 32 pressing profile parameters can be set, enabling flexible processing according to a variety of workpieces. The software for setting the pressing parameters is highly accessible assuring easy operation via its setting screens. Various data, such as load data, intervals, and press-in curves are easily controlled. The compact body, equivalent to a 3.5 MPa hydraulic cylinder, allows space-saving in the design of your setup.
- Digital servo press available range is 0.5 KN – 200 KN.
| Model | Max Load [kN] |
Rated Load [kN] |
Max Speed [mm/s] |
Stroke [mm] |
Weight [kg] |
Applicable controller |
|---|---|---|---|---|---|---|
| DPS-051R3-20FB | 5 | 1.8 | 333 | 200 | 16.4 | MFC-S060S |
| DPS-101R3-20FB | 10 | 2.7 | 222 | 200 | 16.4 | MFC-S060S |
| DPS-301R4J-20FB | 30 | 10.8 | 250 | 200 | 36.5 | MFC-S120S |
| DPS-501R4J-20FB | 50 | 13.5 | 200 | 200 | 62 | MFC-S120S |
| DPS-501R5-20FB | 50 | 21.5 | 200 | 200 | 74 | MFC-S120S |
| DPS-801R4J-20FB | 80 | 18 | 150 | 200 | 98 | MFC-S120S |
| DPS-102R5-20FB | 100 | 32 | 133 | 200 | 110 | MFC-S120S |
| DPS-202Y5-20FB | 200 | 73 | 120 | 200 | 218 | MFC-GSC |
*Customized stroke available
| Model | Max Load [kN] |
Rated Load [kN] |
Max Speed [mm/s] |
Stroke [mm] |
Weight [kg] |
Applicable controller |
|---|---|---|---|---|---|---|
| DPR-101R3-30FB | 10 | 2.5 | 238 | 300 | 31 | MFC-S060 |
| DPR-301R4J-30FB-CE | 30 | 8.3 | 250 | 300 | 52 | MFC-S120S |
| DPR-501R4J-30FB-CE | 50 | 10.4 | 200 | 300 | 104 | MFC-S120S |
DSP 3000 Series Servo Press Systems
-
Production Process Flexibility
-
Quality & Traceability
-
Patented High Speed Seating Mechanism
-
Wide Range of Tools
Features
- Specific Point load detection.
- Load drop detection.
- Interference check & Part Check.
- Compact design and extremely ergonomic.
- Advance Controller with Ether cat, Ethernet, CC Link, Profinet connectivity.
- Input settings and data output result curves.
- Inbuilt load & distance monitoring /controlling methods.
- Pressing result data storage on CF card and/or PC.
- Capable of high-precision press operations and incorporating the latest RISC-CPU in its control unit, fully digital operation allows faster (1 msec or less) load value sampling, so realizing a ±0.01mm repeated position accuracy.
- Integration with an intelligent electronic identification system mounted in the load cell preamplifier unit enables higher-quality, higher-precision pressing operations
- Various settings such as loading or distance, result data, and analysis data are Windows® oriented, assisting operators with comfortable, effective handling. The drive source is directly electric, not hydraulic or pneumatic, an energy-saving feature that can contribute to the future sustainable environment of the Earth
- By using digital servo motors, free control of the press speed is possible, improving the productivity of your factories. As many as 32 types of press data can be stored in a battery-free backup system, which is connectable to a multi-purpose system.
- Compact body enables space-saving designing.
- An installation space as compact as any available for hydraulic cylinders.
- Contributes to a compact line layout.
